GSD CP submersible solid handling pump

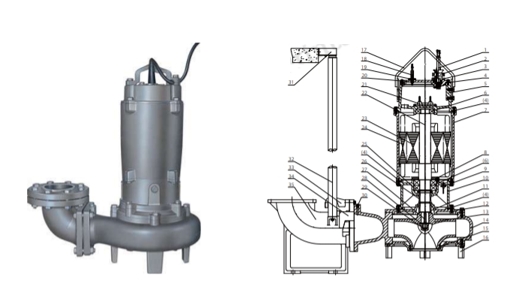

GSD CP SUBMERSIBLE SOLID HANDLING PUMP

GSD CP SUBMERSIBLE SOLID HANDLING PUMP

  • Catalog CP submersible pump(CY-K5)

    147 D/L

  • คู่มือติดตั้ง

    67 D/L

    • Features : Wet-installed submersible motor, IP68, Class F. With non-clog
      impeller, double mechanical seal, built-in leakage and over-heat protection
      control. Auto setter or non- auto setter installation type.

      Application : Used for municipal waste water treatment plant, building
      waste water treatment plant, animal & poultry farm waste water treatment
      system and various industry waste water treatment system.

    • DN : 50 – 500 mm
      Flow rate : 10 m3/hr ~ 2,600 m3/hr
      Head : 6 m ~ 45 m
      Power : 0.75 ~ 250 kw
      Speed : 2900 rpm, 1450 rpm,980 rpm, 760 rpm
      Material : Cast iron, Stainless steel
      Temp : < 40 ºC
